supercomposite

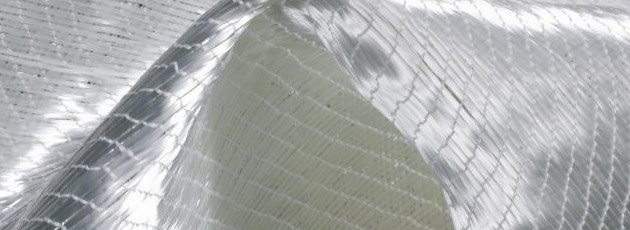

Multiaxial fabrics is non-crimp,multi-axis and multi-layered reinforcements, layer count, orientation, weight and fiber content of the layers vary based on product line and application, the layers are stitched via polyester yarn, fabrics can be produced using multiple axis(0º , 90º , + 45º ,-45º ), or combined with chopped mat and multiple layers of veil and/or non-woven materials. The typical application of this kind of products are wind energy, marine/ship building, recreation/leisure products, automotive, aerospace & defense etc.

Product Code	Specification( Layer Weight g/m2)						Total Weight (g/m2)
	0º	90º	+45º	-45º,	Stitch Yarn	Mat
BX300	-	-	153	153	8	-	314
BX400	-	-	200	200	8	-	408
BXM400/225	-	-	200	200	8	225	633
BX450LD	3	3	214	214	8	-	437
BX600	-	-	301	301	8	-	609
BX600HD	-	-	301	301	8	-	609
BXM600/225	-	-	301	301	8	225	834
BX800	-	-	401	401	8	-	810
BXM800/450	-	-	401	401	8	450	1260
BX1200	-	-	601	601	8	-	1210
OMEGA 225/23MM	53	-	401	401	10	-	865

Properties

• Increased strength,reduced product weightand better sur face finish.
• Orientated unidirectional layers are structurally more efficient.
• Quicker to wet-out than woven fabrics.
• Available in very heavy weights allowing faster deposition rates.
• Binderless CSM can be added to further cut down on lay-uptime and increase speed of wet-out.

Application

Shipbuilding,Power engineering,Sports and leisure time,Automotive industry, Airplane construction,Machine building, Plant engineering, Aerospace industry, Medical sector
