Vacuum infusion accessories > Peelply

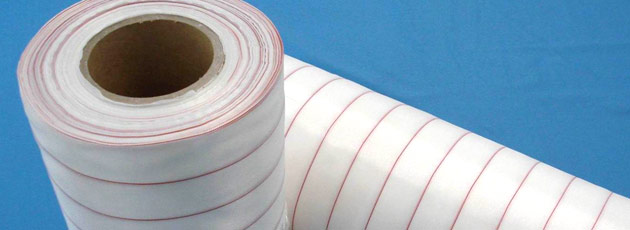

Peel Ply is a plain weave nylon fabric. Under scoured and heat set. Process, the surface is very clean and the fabric is very strong which gives perfect release property. The fabric can be coated also. Main application is Aero-space industry, marine industry, wind blade industry.
| Material | Nylon 66 |
|---|---|
| Weave | Fabric |
| Warp Filaments/cm | 17,00 (Tolerance ± 5%) |
| Weft Filaments /cm | 17,00 (Tolerance ± 5%) |
| Area Weight gr/m2 | 85,00 (Tolerance ± 5%) (83-85) |
| Thickness in mm | 0.15 |
| Width in mm | 15-3000 |
| Temperature Resistance in °C | < 230 |
| Tensile strength Warp in N | > 320 |
| Tensile strength weft in N | > 255 |
Application
Shipbuilding,Power engineering,Sports and leisure time,Automotive industry, Airplane construction,Machine building, Plant engineering, Aerospace industry, Medical sector
